Tamiya XV-02RS Pro Chassis

Tamiya XV-02RS Pro Chassis

Regular price $569.00
Regular price Sale price $569.00
Sale Sold out
Tax included.

Low stock

On-Road Oriented Rally Chassis!

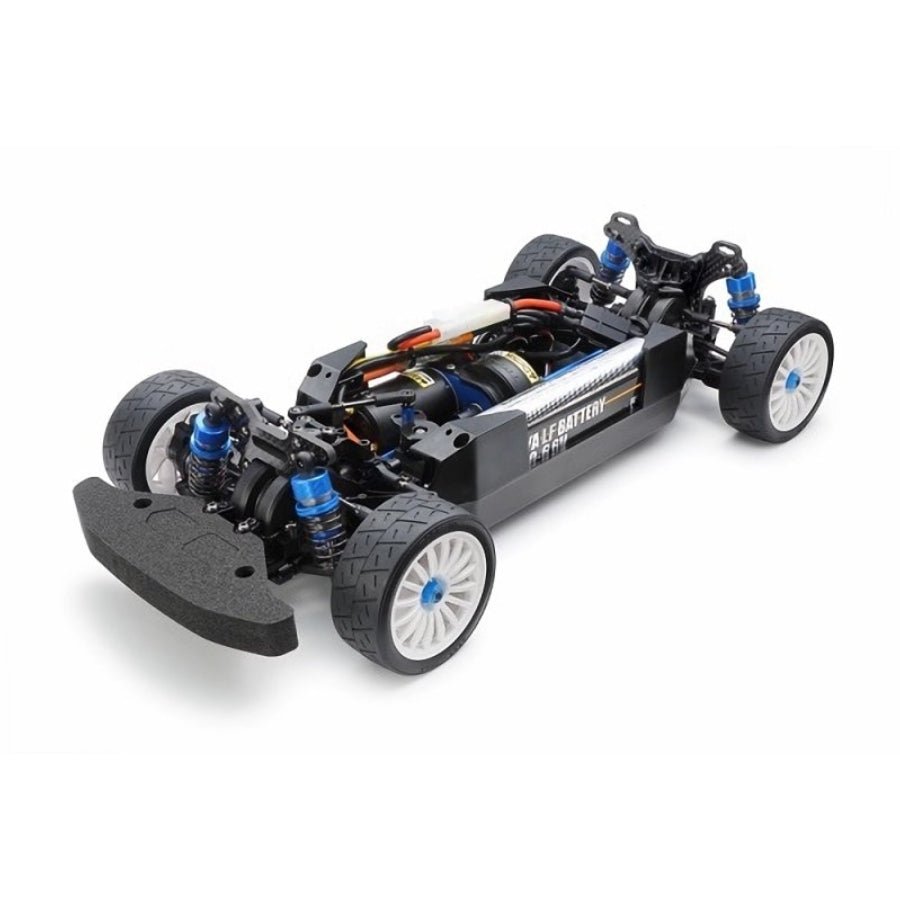

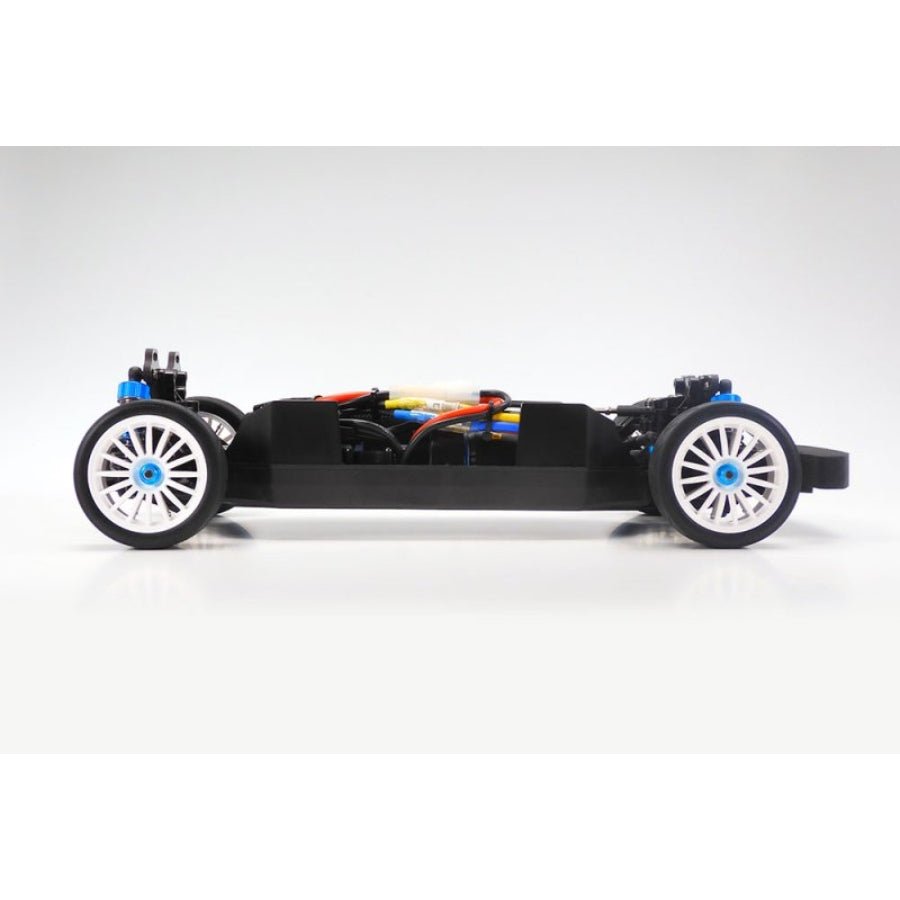

This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.

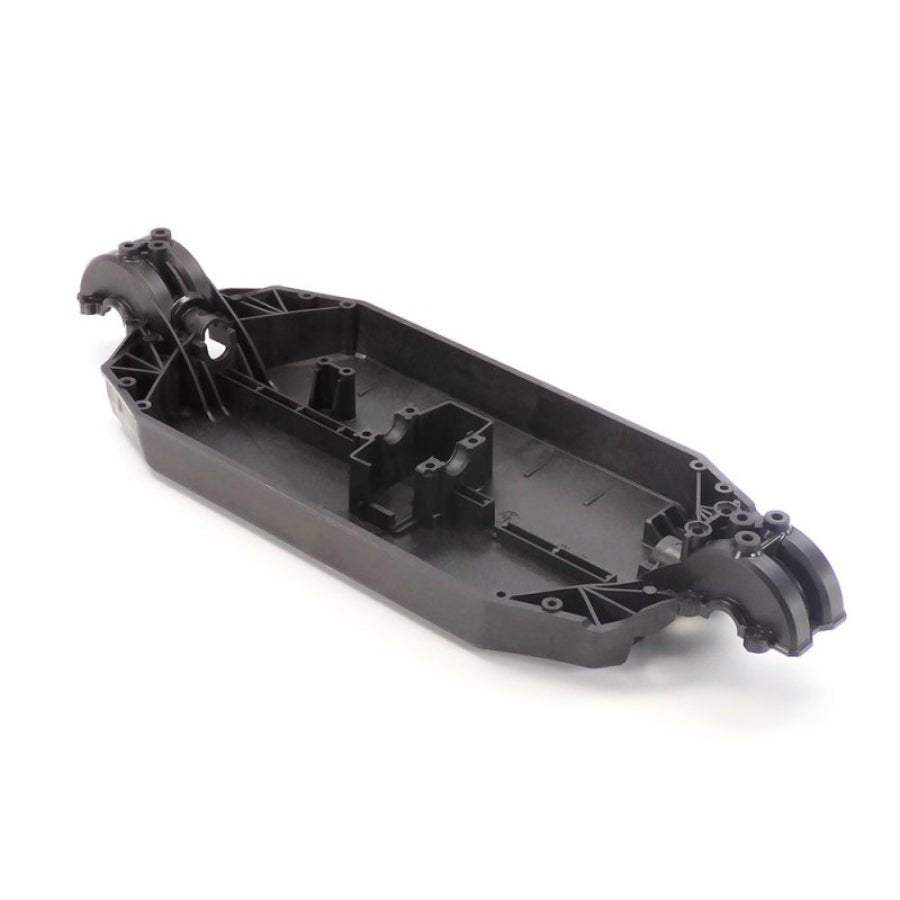

★Length: 368mm, width: 180mm ★Wheelbase: 257mm ★Carbon fiber-reinforced plastic bathtub frame ★Front midship motor, shaft-driven 4WD ★Front & rear oil-filled gear differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Aluminum cylinder oil dampers (blue caps, touring car size) ★Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions) ★Electronic speed controller (ESC) is sold separately.
Separately Required Items
★Body ★Type 540 motor ★2-channel R/C system w/ESC & low-profile servo ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
