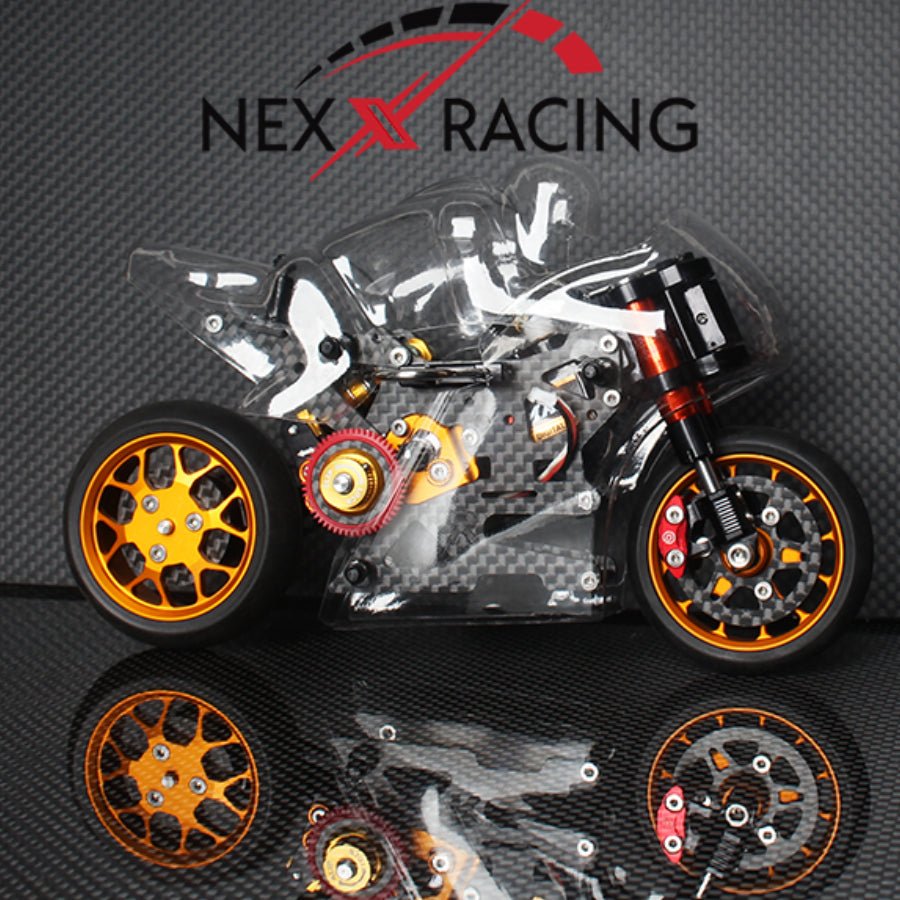

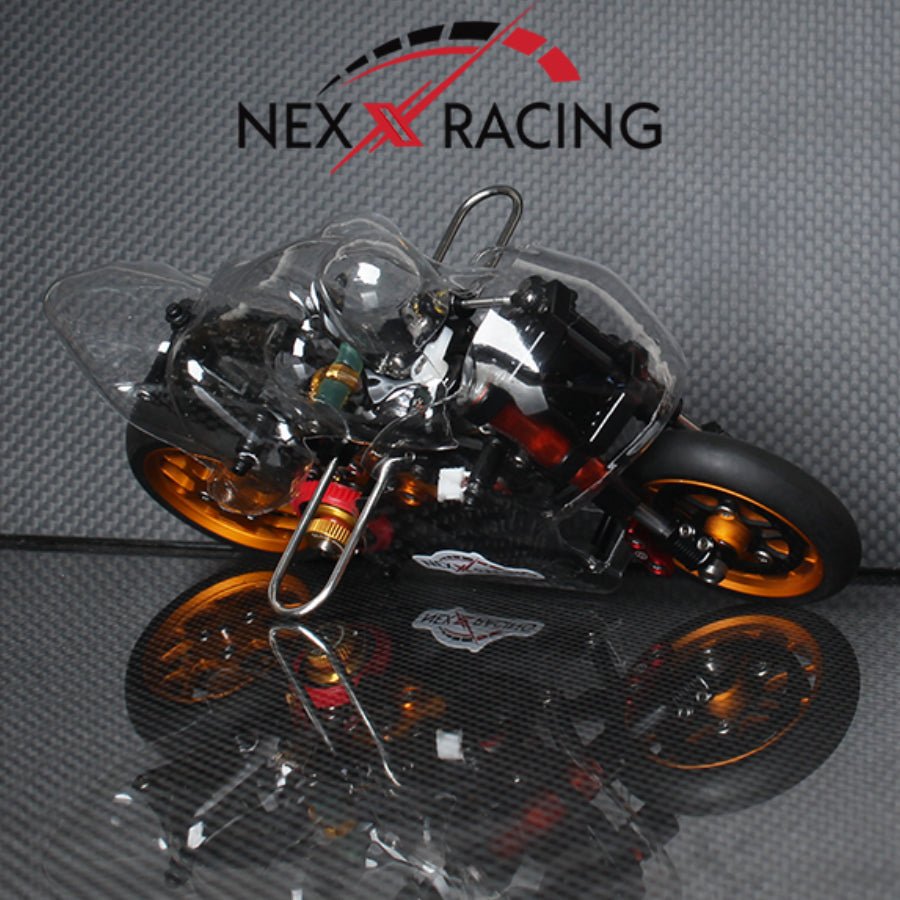

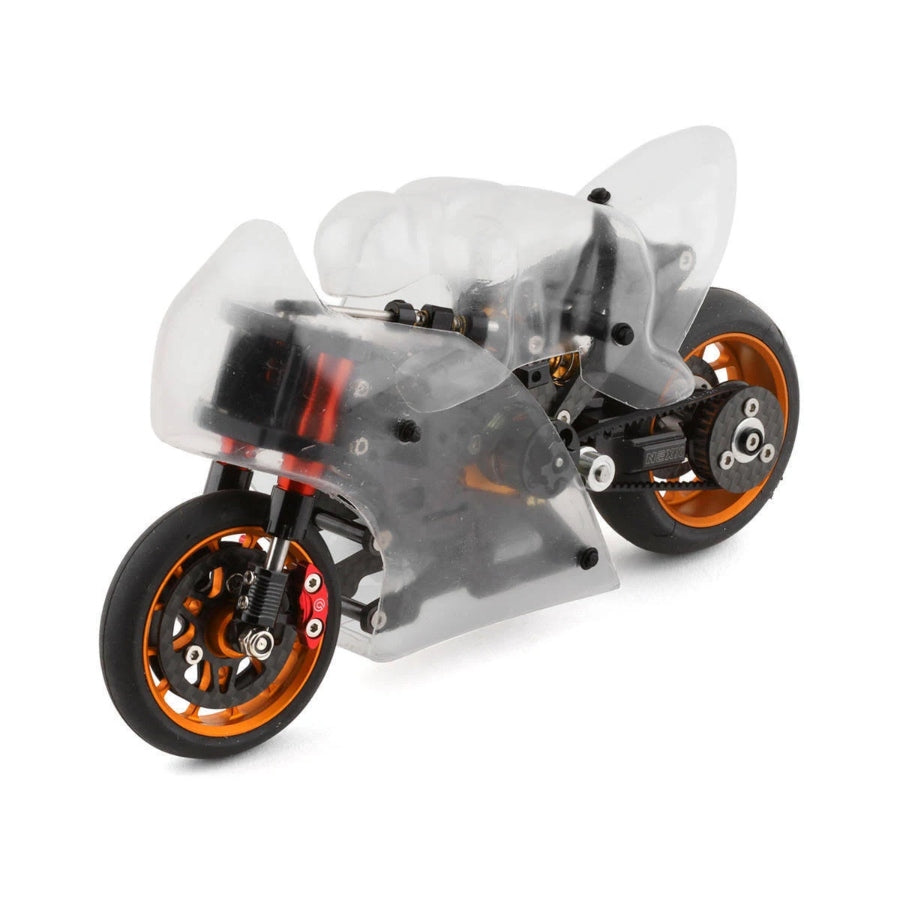

NX-289 Nexx Bike Jaguar 1/12 Motorcycle RC (with Brushless Motor & Servo)

DESCRIPTION of  NEXXBIKE JAGUAR RC 1/12

• Easily controlled. Perfect for newbies and pro drivers. Play by yourself or race with your RC-Mates.
• NexxBike Jaguar could travel at very high speed and able to withstand collisions many times as collision tests have been conducted many times.
• Rear Single Swing Arm. Extremely Strong and Stiff.

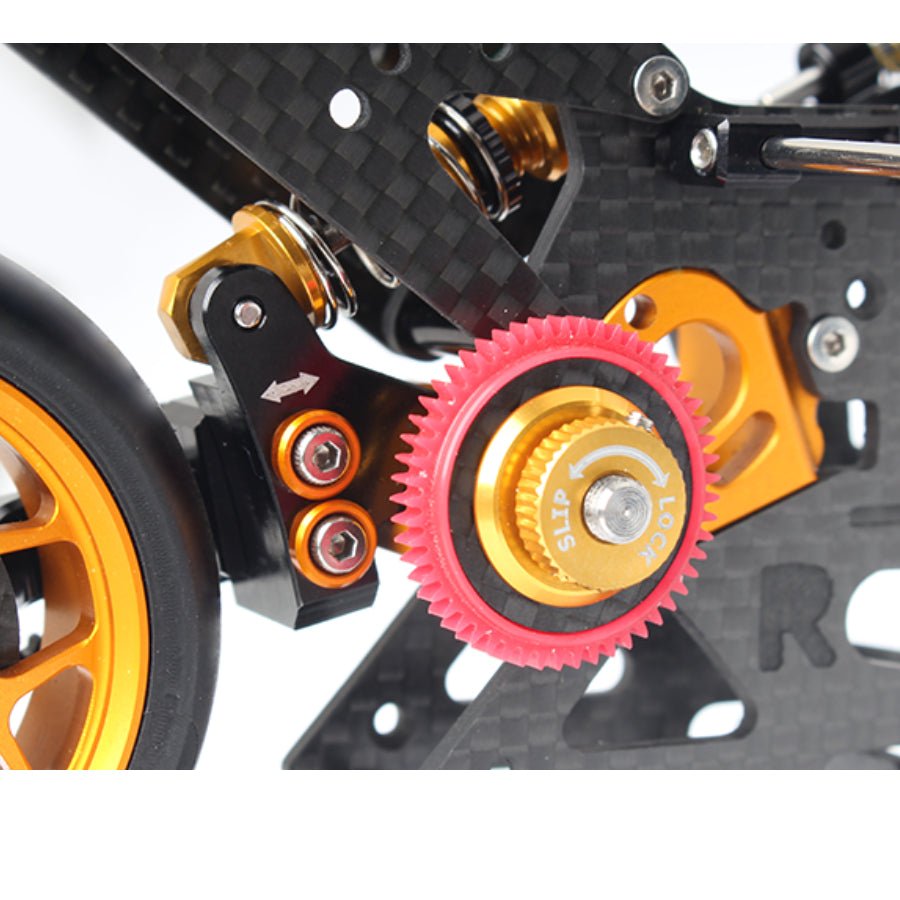

• Slip-Lock System could be adjusted to prevent wheel slipping or increase acceleration of NexxBike Jaguar (due to this system, controlling NexxBike Jaguar become very easy) .

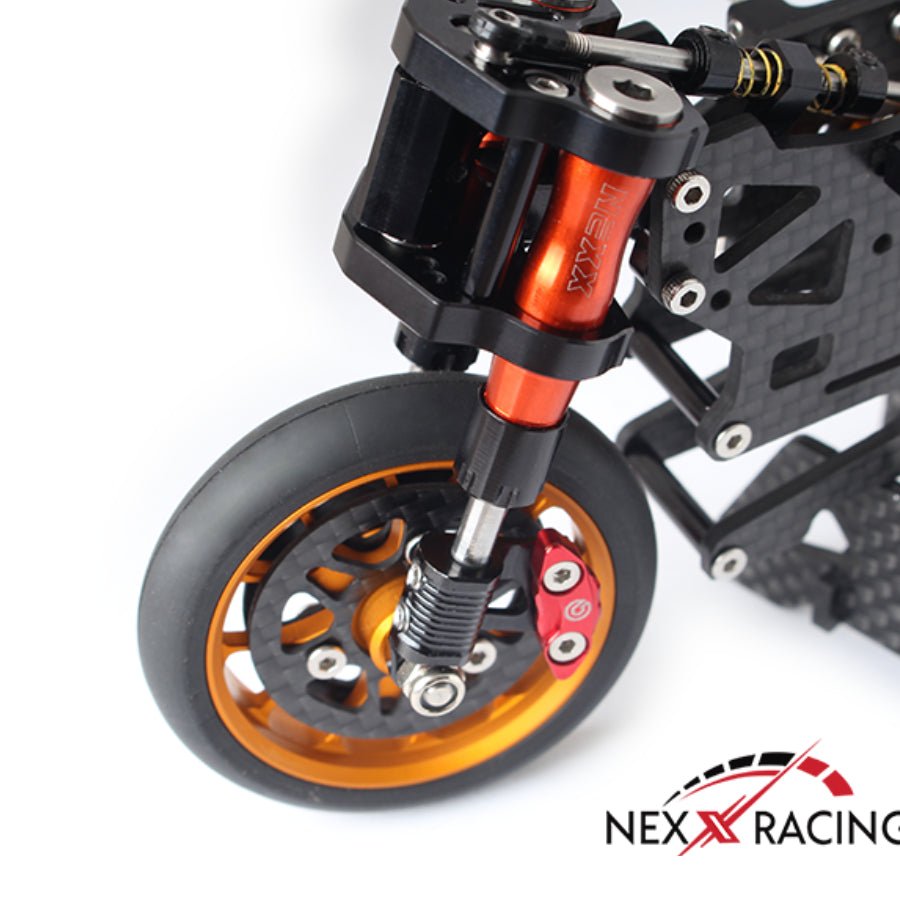

• SMOOTH Front and Rear Suspension System, different types of SILICON OIL could be used to suit your preference (Grease Shock).
• Tires are made from top quality material. Provide a realistic experience of controlling a 1:1 Racing Motorbike.
• Front and Rear Wheels are CNC and anodized with stunning color and most advanced technology.

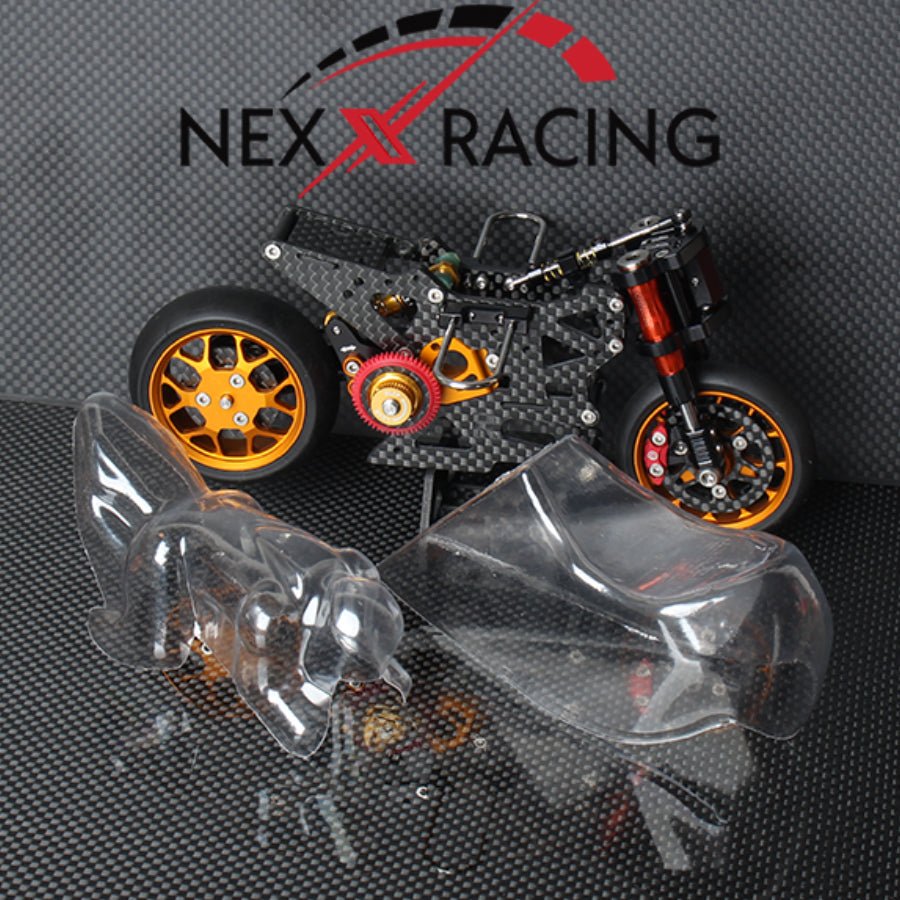

• Come with an-uncut and clear Lexan Body. Can be customized by your preference.
• All parts including 7075 T6 Aluminum, SUS304 and Carbon Fiber are precisely CNC machined. Along with Stainless Steel Hardware.
• Electronic components come with NexxBike Jaguar including a 5500kV Brushless Motor and Emax ES08MD Digital Servo (these would satisfy all your requirements).
• Timing Belt Tensioner System can be easily adjusted. High Quality and Enduring Timing Belt.
• 5500kV Brushless Motor can fit many Pinions with various T number (10T – 14T). (included 11T -7075 alu pinion).
• All NexxBike Jaguar replacement parts are always AVAILABLE IN-STOCK AT NEXXRACING Official Site.
• Diversified Upgrade Options (would be updated soon).

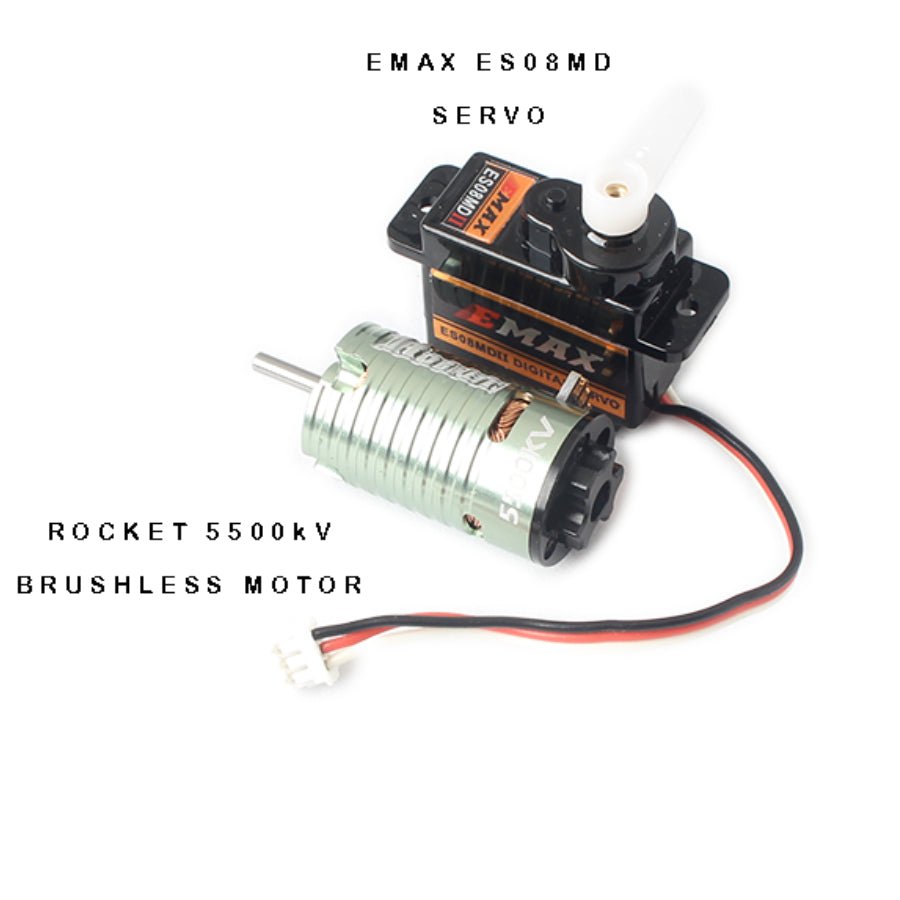

Included Motor and Servo Specifications:

ROCKET 5500kV BRUSHLESS MOTOR

• Brand: ROCKET-RC
• Speed: 5500 RPM
• Voltage 8.4 Volts
• Horsepower: 2 Watts
• Material: Aluminum , Copper
• Item Weight: 17 Grams
• 2 Pole 3 Slot Hi-torque Motor Design. CNC Machined 6061 T6 Billet Aluminum Heatsink Can.
• High Purity Copper Windings Maximizes Efficiency. High RPM ABEC5 Oversized Bearings.
• Universal fit, fits all 1/24,1/28 brushless cars-multi-mounting system for M2.0/M1.6 screws.
• Precision balanced rotor, smoothness for best reliability and maximum RPM.
• Stator – Super Thin (0.2mm) Laminations. Precision Engineered for Maximum Energy Conversion.

EMAX ES08MDII DIGITAL SERVO

• Operating Voltage: 4.8-6.0V DC
• Standard Direction: Counter Clockwise, Pulset 1500 to 1900usec
• Stall Torque at 4.8V: 1.6Kgf.cm(21.0 oz.in)
• Operating Speed at 4.8V: 0.12 sec/60o at no load
• Stall Torque at 6.0V: 2.0Kgf.cm(28.0oz.in)
• Operating Speed at 6.0V: 0.10sec/60o at no load
• Size 23×11.5x24mm
• Weight: 12g
• Plug: JST-ZH 1.5mm
• Type: Digital Metal Gear

Requirements For Installation:
• Micro ESC: 16A Brushless (Recommended: PNRacing ESC; Dasmikro ESC; GLRacing v1.2 ESC; … with no reverse setup)
• RX: Micro RX with JST-ZH 1.5mm connector.
• Battery: 2s – 7.4V LiPo Battery (maximum dimension 21 x 47.5 x 15 mm). Recommended: GNB GAONENG 350mAh
