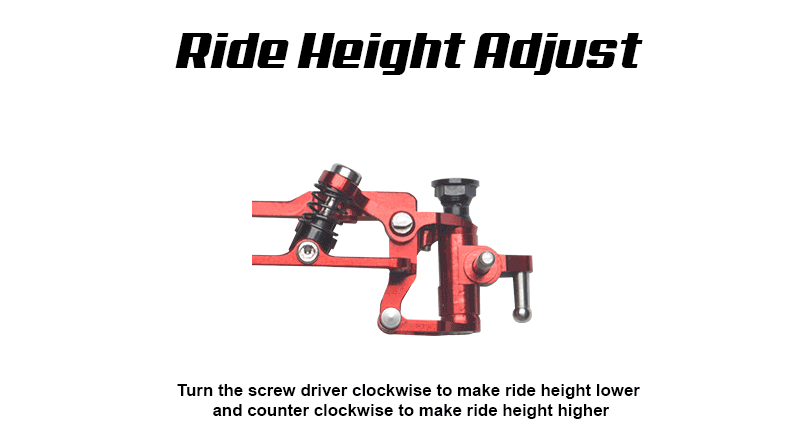

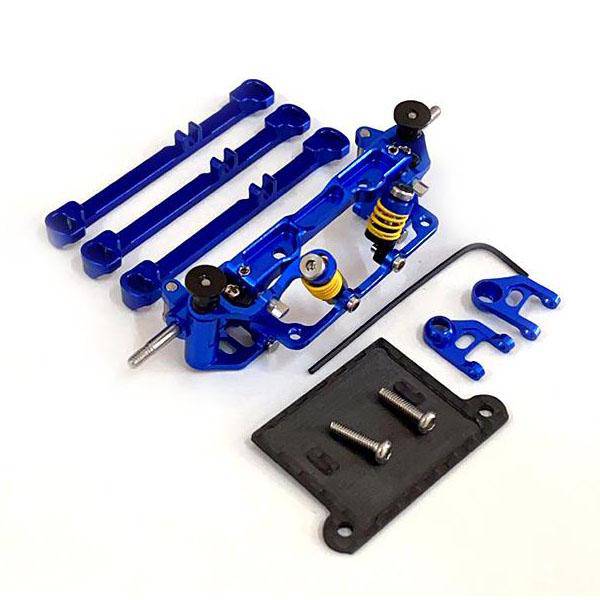

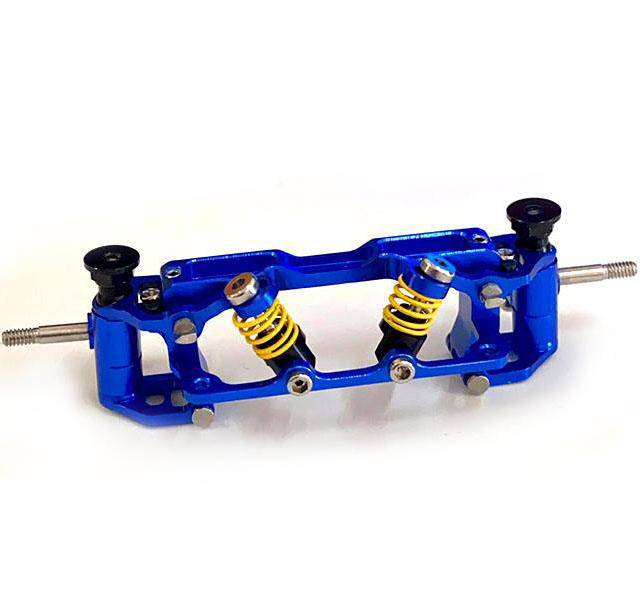

NEXX RACING V-line Front Suspension system is designed with innovative features such as quick adjustable caster, quick adjustable camber, adjustable ride height…. It makes the Mini-Z looks much like a real car, not only fast but also stable, better cornering and better suspension overall. With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance. The V-LINE suspension systems fits only Mini-Z MR03 wide base models and also fits PN 2.5 Chassis. For easy assembly, we pre-install the V-LINE suspension system at factory so it’s very easy and fast to assembly it on the Mini-Z.
V-LINE SUSPENSION SYSTEM FEATURES
V- line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system·
Same width as stock. (MR02/ MR03 PNR2.5W Chassis width)·

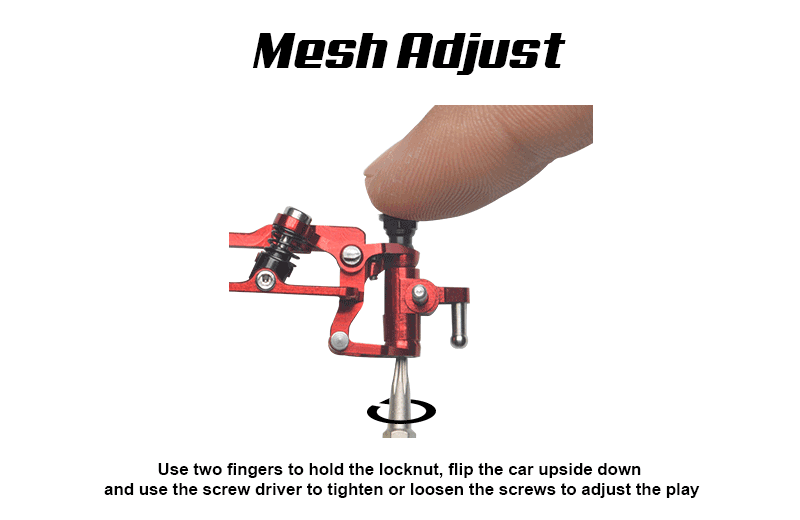

Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision.·

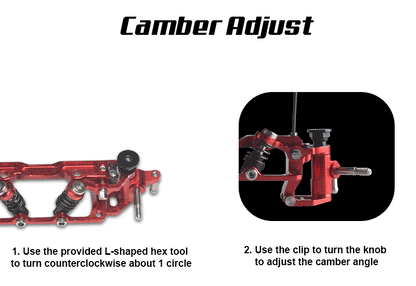

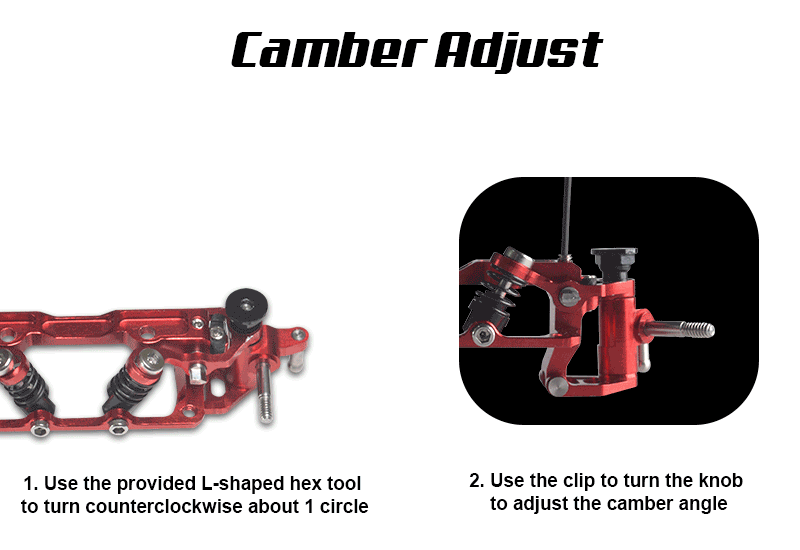

Adjustable camber from 0-30degrees with 4 position eccentric shaft with easy operation·
Quick adjustable caster by caster bar from 0-1.90·
Both 00and 10 lower A arms provided to facilitate suspension setup·
