HOBBYWING 8BL150 BRUSHLESS ELECTRONIC SPEED CONTROLLER

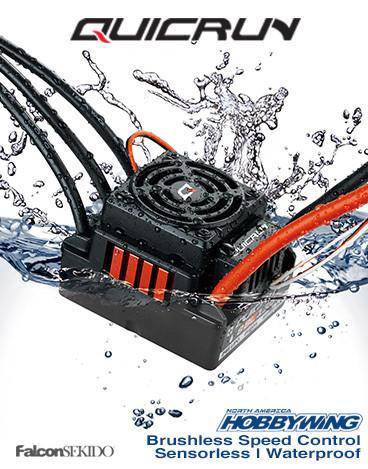

HobbyWing QuicRun 1/8 Brushless WaterProof 150A ESC WP-8BL150

Feature:

• For: 1:8 Buggy/Monster
• Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
• 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
• Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
• One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
• Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Specification:

• Model: QUICRUN-WP-8BL150
• Cont./Peak Current/ Resistance: 150A/950A/0.00035Ω
• Motor Type Supported: Sensorless Brushless Motor
• Car Applicable: 1:8 Buggy/Monster
• Motor Limit:
• For 4S Lipo or 12 cells NiMH:
• 4274-size or smaller motor with the KV<3000
• For 6S Lipo or 18 cells NiMH:
• 4274-size or smaller motor with the KV<2400
• Battery: 9-18 Cells NiMH 3-6S Lipo
• BEC Output: 6V/3A (Switch Mode)
• Size/ Weight: 59.5(L)*48(W)*42(H) / 178g
• External Program Port: Available
• Working voltage of Fan: From BEC (6V)

Include:

• HobbyWing QuicRun 1/8 Brushless WaterProof 150A ESC (1 Set)
• Manual (1 pc)
