Tamiya 1/10 2022 Thunder Shot 4WD Electric Off Road RC Buggy Kit w/o ESC

Tamiya 1/10 2022 Thunder Shot 4WD Electric Off Road RC Buggy Kit w/o ESC

$290.99
$290.99
Sale Sold out
Tax included.

Low stock

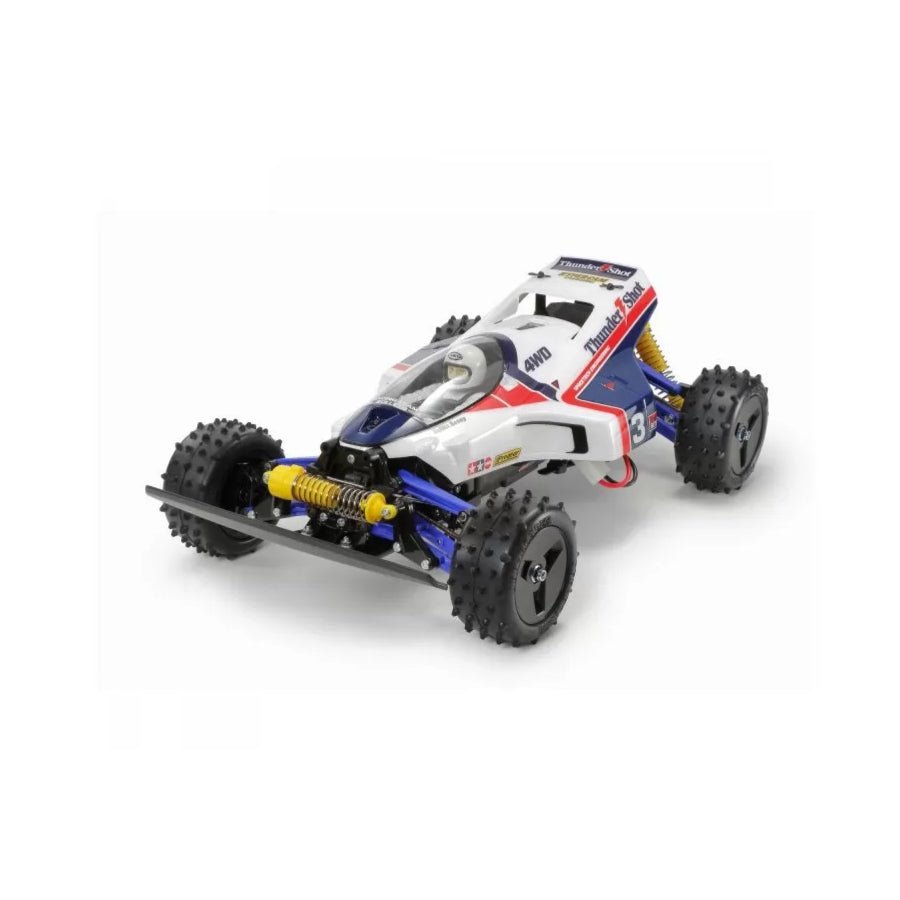

The compact, futuristic body is moulded in lightweight and durable polycarbonate.

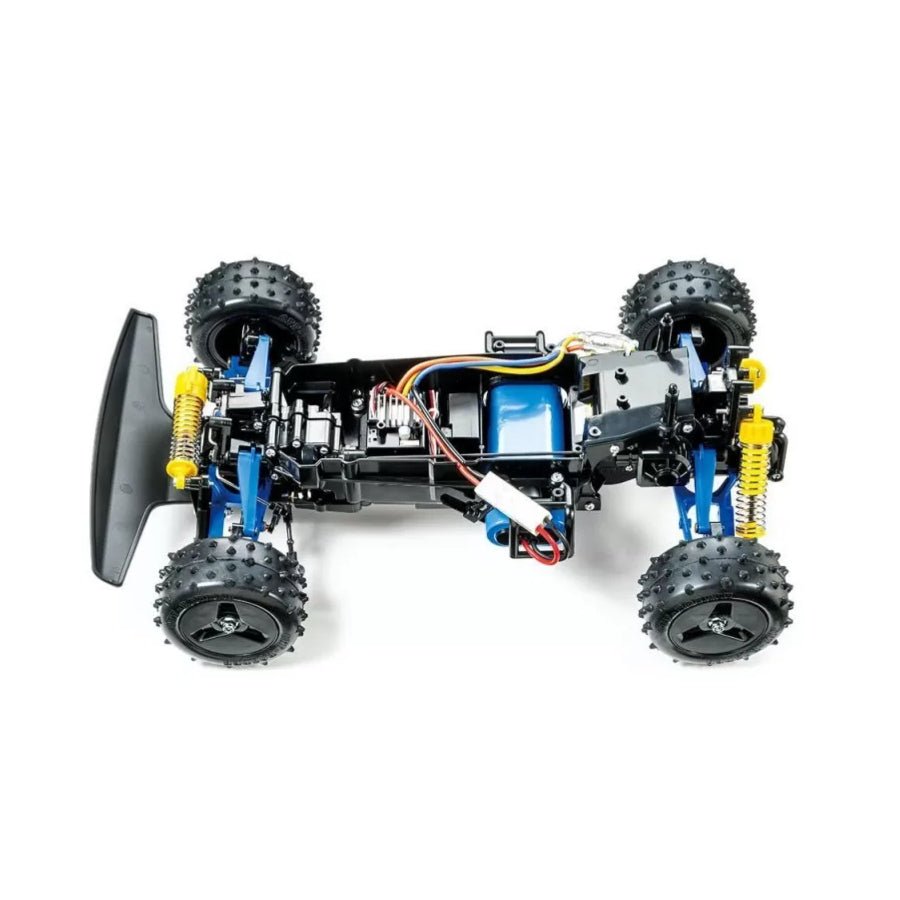

Sturdy and easy to work on, the chassis has an ergonomic design based around an ABS bathtub.

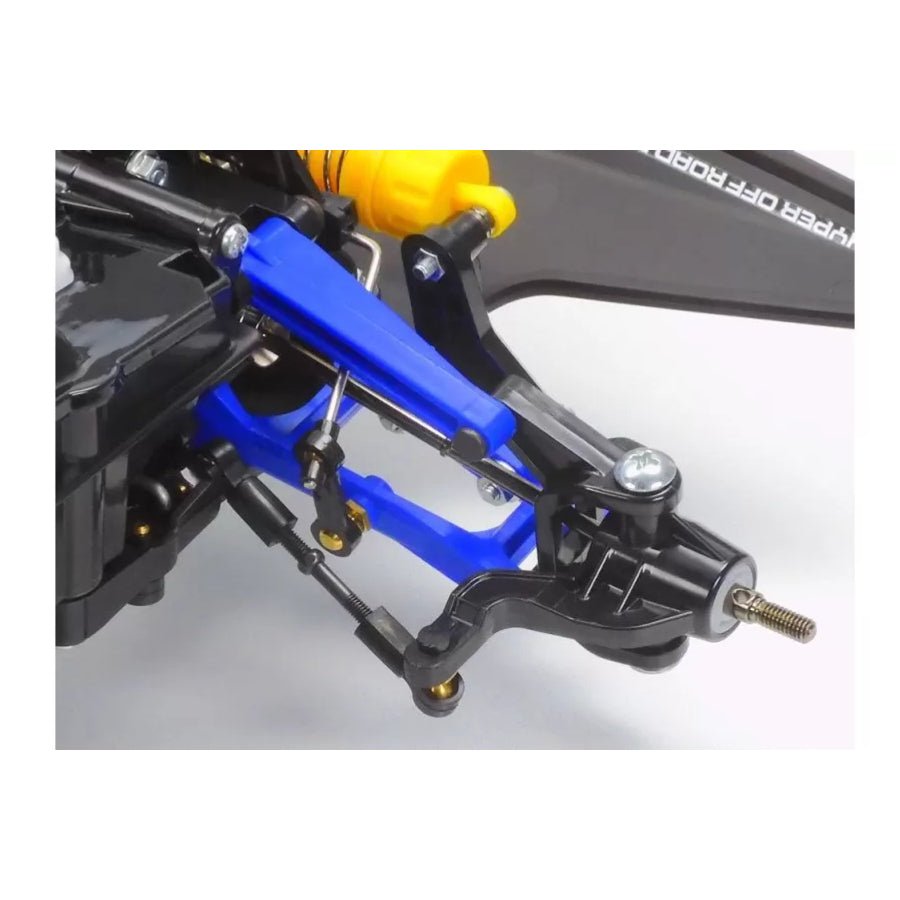

The front double-wishbone suspension employs upper "I" and lower "H" arms.

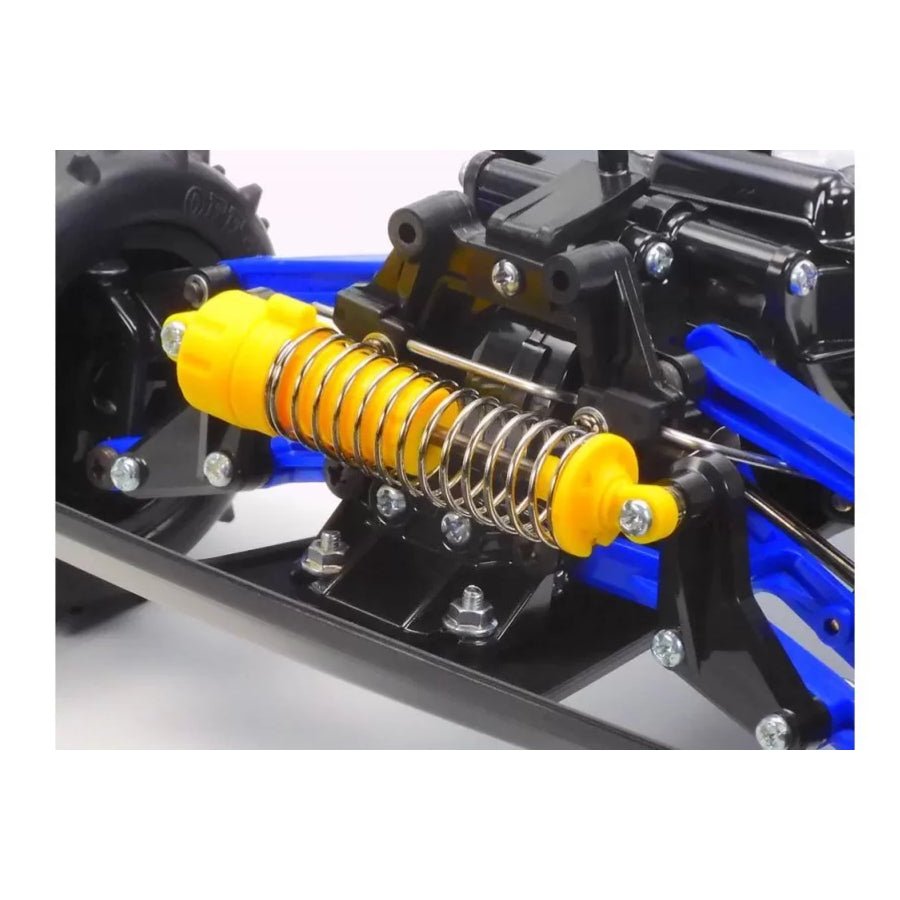

A front mono-shock setup sees the CVA oil damper laid on its side. The stabiliser helps suppress roll.

An aluminium motor mount not only keeps the motor securely attached, it also acts as a heat sink.

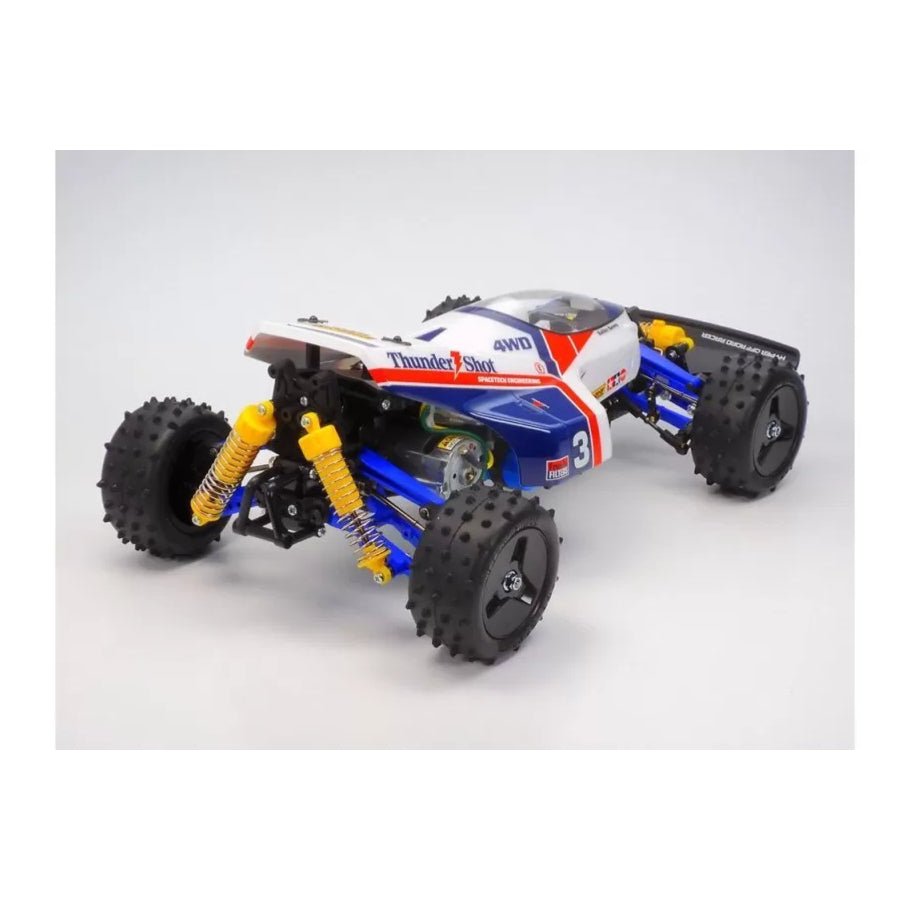

The rear of the chassis also uses double-wishbone suspension, with a pair of CVA oil dampers.

Features
  • This R/C model assembly kit is a re-released and updated version of Thunder Shot, the original of which was first released in 1987
  • Polycarbonate body is pre-cut & pre-painted in white and blue, with transparent canopy (Body requires application of stickers, assembly and painting of figure, and other work)
  • ABS bathtub chassis
  • 4-wheel independent double wishbone suspension with CVA oil dampers uses front stabilizer for a superior ride Kit includes CVA oil dampers II instead of Type I seen in the original release
  • The front and rear sealed gearboxes contain compact, durable die-cast 3-bevel differential gears for smooth performance
  • Semi-pneumatic spike tyres
  • Contains separate rear wing (pre-painted in white)

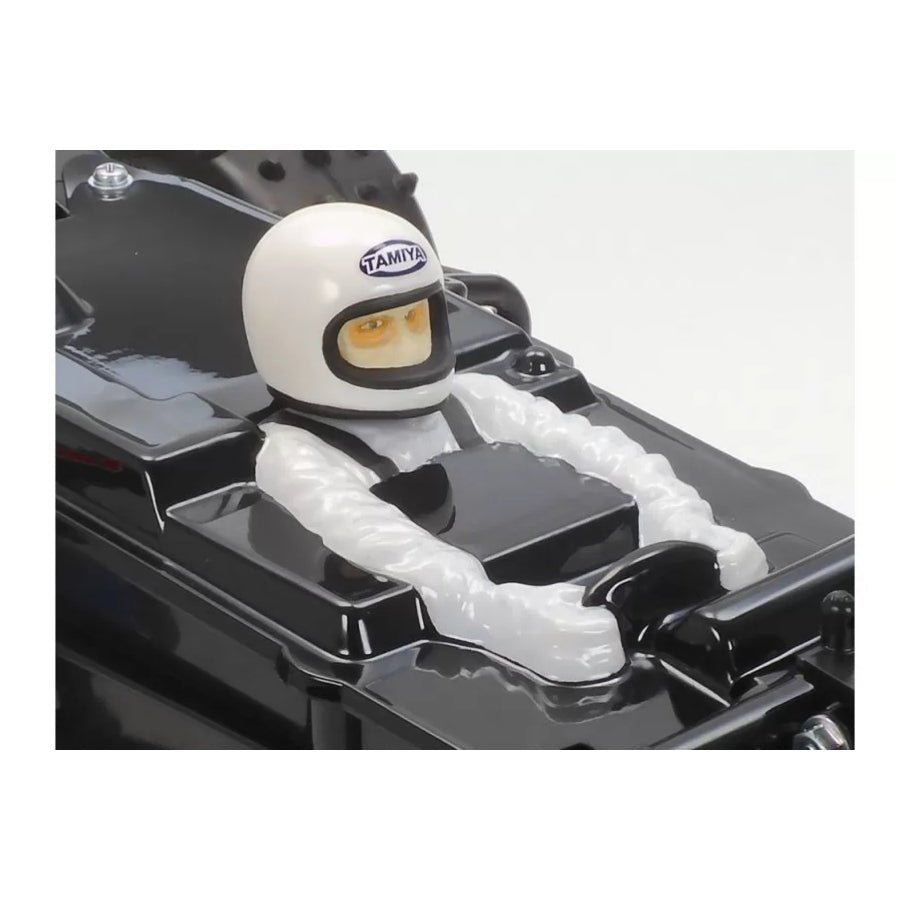

  • Includes a driver figure
  • Type 540 motor included
Specifications
  • Length: 390mm (15.3"), width: 240mm (9.44"), height: 135mm (5.31")
  • Wheelbase: 260mm (10.2")
  • Adjustable Gear Ratio: Fixed
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 4WD
  • Electronic Speed Control: Not Included
  • Motor: 540-brushed type
  • Scale: 1/10
  • Shock Damper: CVA Oil Filled
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: Off-Road
